Revival 560 X-Rider

$0.00
* Sail Away
Send an Enquiry
Click to zoom / enlarge this image

No matter what's on your family's boating agenda, the new R560 X-Rider delivers No matter what's on your family's boating agenda, the new R560 X-Rider delivers Handcrafted for adventurous families who like to keep their options open, the all new R560 X-Rider boasts a versatile cockpit that no 19-foot sterndrive can match. Designed to unleash the potential of the latest FourStroke or Direct Injection 2-Stroke outboards in the 115 - 150hp range, the R560 X-Rider’s purposeful stance really delivers out on the water where it counts.

Mechanical Steering

Steering

5.8 metres

Length

Fibreglass

Hull Material

N/A

Hull Type

Details Specifications Features & Options
Boat Details
  • Make: Revival
  • Name: 560 X-Rider
  • Model Number: N/A
  • Year: 2022
  • Length: 5.8 metres
  • Width: 2.37 metres
  • Dry Weight: 1600 kg
  • Hull Material: Fibreglass
  • Hull Type: N/A
  • Passenger Capacity: 7
  • Boat Usage: N/A
  • Steering: Mechanical Steering
  • Warranty: N/A

  • Hull Length (mm)... 5800mm
  • Hull Beam (mm)... 2370mm
  • Transom Deadrise... 21 degrees
  • Transom Height (inches)... 25"/XL
  • Height on Trailer to top of Windscreen... 2150mm
  • Overall Length on Trailer (mm)... 7000mm
  • Draft (mm)... 300mm
  • Hull Weight (kg) - dry... 850kg
  • BMT Weight (kg) - dry... 1600kg* (Subject to variation)
  • Fuel Capacity (lt)... 130lt
  • Number of People... 7 Adults
  • Horsepower... 115 - 150hp
  • Max Outboard Weight (kg)... 250kg
  • Estimated Cruise Speed (kph) w/Mid-Range hp... 45kph
  • Estimated WOT Speed (kph) w/Mid-Range hp... 70kph (135HP)
  • Internal Cockpit Length (mm)... 1600mm
  • Internal Cockpit Beam (mm)... 1950mm
  • Anchor Storage Compartment with Lockable Lids
  • Auto Bilge Pump Hose and Outlet

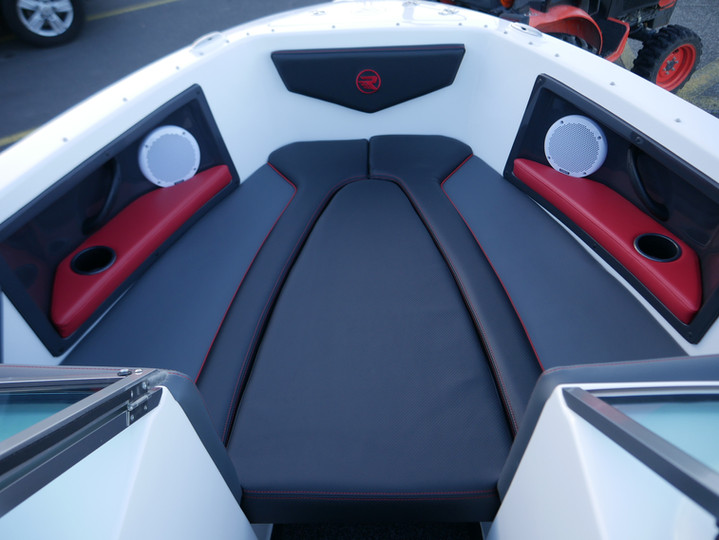

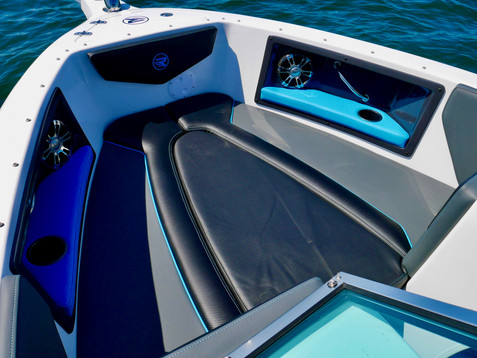

  • Bow Rider Cushions and Upholstered Back Rests with Upholstered Storage Pockets
  • Bow Roller - Stainless Steel
  • Carpeted Floor
  • Cockpit Side Pockets - Fibreglass Gelcoated White with Vinyl Trim
  • Drink Holders - x 4 (Carbon-Look Plastic)
  • Foam-Filled Hull
  • Glove Box - Large Fully-Carpeted
  • Hand-Laminated Fibreglass Hull and Deck
  • Hydraulic Steering with Sports Steering Wheel
  • Hull and Deck - All White Gelcoat with Edition Specific Stripes and Graphics
  • Large Bow Seating Area with Upholstered Seats Atop Concealed Storage Bins
  • Navigation Lights
  • Padded X-Rider Backrest Rear of Cockpit with Storage-Style Rear Lounge
  • Padded Side Pockets - Vinyl Detailing
  • Panic Rail for Passenger - Stainless Steel
  • Rear Starboard-Side Storage Locker/Bait Well that Drains Overboard - Not Plumbed
  • Rear Pop-Up Cleats - Stainless Steel (2)
  • Rear Door/Step Through Transom (Port)
  • Rear Tow Eyes - Stainless Steel (2)
  • Swivel Bucket Seats on Fixed Pedestals with Seat Slides and Flip Up Bolsters
  • Twin-Core Tinned Wiring to Dash
  • Underfloor Fuel Tank 130L with Breathers that Drain to Engine Well, Fuel Sender,
  • Filler Cap in Engine Well
  • Underfloor Kill Tank/ Storage Locker -  (Aprox 150lt)
  • Water-Resistant Switch Panel
